Description

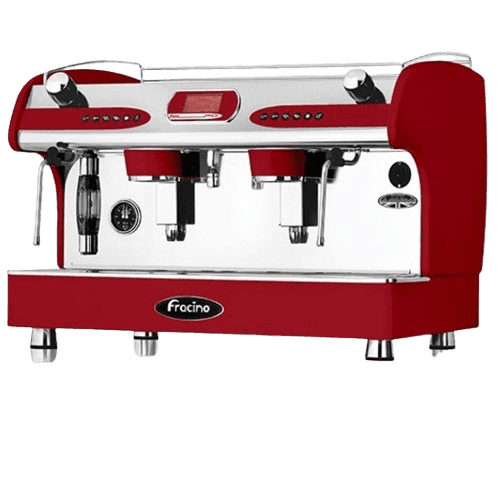

Precision‑engineered espresso machines with independent group boilers

The Fracino PID series represents the fusion of extensive R&D, world‑class engineering and state‑of‑the‑art manufacturing. Available in 2‑group and 3‑group versions, each group features its own independent boiler with individually adjustable temperatures (80–115°C), allowing baristas to fine‑tune extraction for different coffees while maintaining a large central boiler for abundant steam and smooth‑flow hot water. The PID range offers advanced control, diagnostics and customisation through an intuitive front‑mounted LCD display.

Model Options

PID2 / Electronic

• Electronically controlled
• Four accurately pre‑programmed coffee measures
• Automatic group cleaning cycle

PID3 / Electronic

• Electronically controlled
• Four accurately pre‑programmed coffee measures
• Automatic group cleaning cycle
• Larger 3‑group configuration for higher output

Illuminated Back Panel

• Optional illuminated rear panel
• Can be branded to individual requirements
• Available colours: gloss white, burgundy, black and stainless steel

Key Features

• High‑quality copper boiler heated by multi‑looped element
• Triple‑contact pressure switch for precise pressure control
• Automatic water‑level system with probe, electronic control unit and solenoid valve
• Independent brass safety valves for water and steam
• Standard clearance: 110 mm
• Stainless‑steel 304 case, waste tray and cup tray
• Independent nickel‑plated brass group boilers
• Brass‑bodied group with stainless shower plate, solenoid valve and high‑pressure pump
• Thermosyphonic circulation for stable group temperature
• Automatic on/off timer
• F.A.S.T steam system (right‑hand side) usable simultaneously with groups
• Dual pressure gauge (water and steam)
• Easy‑clean steam tubes

Auto Control Features

• Independent group‑boiler temperature control (80–115°C), accurate to ±1°C
• Programmable pre‑infusion times
• Electronic hot‑water valve with programmable dispense time and adjustable temperature
• Programmable shot volumes and built‑in shot timer
• LCD display showing group temperatures, steam‑boiler temperature, time, status and diagnostics
• Drinks counter per group
• Service timer with warning message when service threshold is reached
• Water‑usage monitoring
• Programmable water‑filter replacement alert
• Adjustable latte/cappuccino foam consistency and milk temperature (with optional FAST Steam upgrade)
• Customisable LCD colour (dark blue, light blue, green, red, purple)
• Language options: English, Italian, French, German

Technical Specifications

• PID2: 2 groups, 240–400 cups/hr, 565 mm (H), 800 mm (W), 550 mm (D), 70 kg, 14 L boiler, 6.2 kW/30 A, 60–80 L hot water/hr
• PID3: 3 groups, 360–600 cups/hr, 565 mm (H), 1045 mm (W), 550 mm (D), 90 kg, 20 L boiler, 8.5 kW 230 V 40 A (to order) or 11 kW/16 A per phase, 100 L hot water/hr
