Description

High‑capacity, space‑efficient hot & cold vending

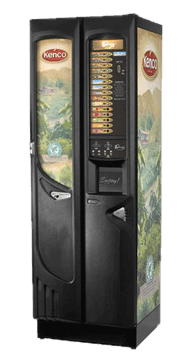

The Refresh 1400 delivers exceptional convenience and value, offering a wide range of hot and cold beverages in a compact footprint of just 0.4 m². Designed for demanding environments, it provides an impressive selection of drinks with outstanding capacity and engineering quality.

Features

• Up to 15 primary drink selections (10 in‑cup drinks, 4 syrup drinks, plus drinking water)
• Electronically controlled self‑opening/closing cup‑station door for safety and security
• Optional syrup‑based cold‑drink system with high‑capacity cooler or cooler/carbonator
• Cold drinks available in multiple cup sizes and styles
• High‑capacity 7.5‑litre sugar container (standard)

Capacity

• Selections: 10 in‑cup drinks, 4 syrup options, still or sparkling water
• In‑cup sizes: 71 mm, 73 mm, 76 mm
• Standard in‑cup capacity: 88 per selection (880 cups total)
• Capacity upgrade: 1280 cups (increased capacity on top 5 selections)
• Cold‑drink cup dispenser: 220 cups
• Syrups: 4 × 5‑litre bottles
• Sugar hopper: 7.5 litres

Dimensions

• Width: 610 mm
• Height: 1850 mm
• Depth: 660 mm

Weight

• 160 kg

Power

• Operating voltage: 220–240 V, 50 Hz, single phase
• Maximum power consumption: 2.5 kW (3 kW with chiller)
• Fuse rating: 13 A
• Power cable: 2.5‑metre mains lead

Water Requirements

• Mains water connection via 3/4″ BSP fitting (hose available)
• Water pressure: 1.5–10 bar (0.15–1 MPa)

Payment Systems

• Available as free‑vend, coin/token mechanism, or full change‑giver
• Electronic coin mechanism accepts all coins and tokens
• Accumulated credit allows multiple vends
• Free‑vend override switch
• Compatible with I‑Key cashless payment system

Options

• Ambient or refrigerated cold water
• Carbonation system for sparkling cold drinks
• CO₂ low‑pressure detector
• Illuminated/customised identity panel
• Compatible with a wide range of DarenthMJS slave machines for a complete refreshment solution
