Description

Stylish, robust and barista‑quality

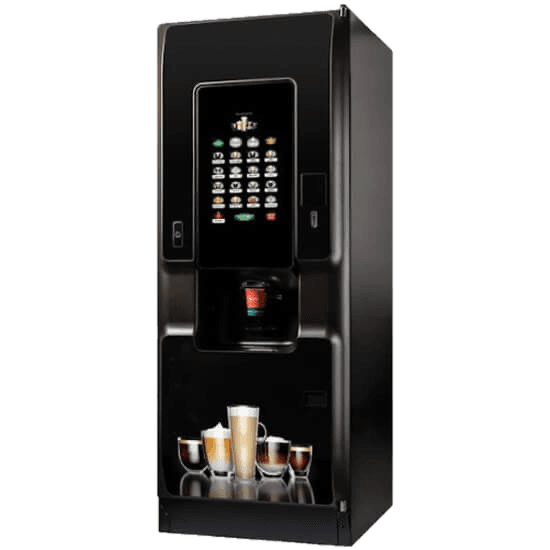

CALI is built on CPI’s reliable coffee platform, delivering high‑quality bean‑to‑cup coffee and fresh‑leaf tea. Its durable exterior and modern touch interface with backlit buttons and a colour video display make it ideal for any environment.

Benefits

• Great consumer experience
• Stylish, durable design
• Reliable CPI coffee platform
• Barista‑quality coffee

User interface & display

• Direct touch buttons
• 5″ HD landscape colour display
• Screen dimensions: 106 mm × 64 mm
• Resolution: 800 × 480 pixels
• 24‑bit full‑colour TFT
• Video supported: Yes

Brewing & cup systems

• Coffee brewing: Co‑Ex (coffee & espresso), 6.5–9.5 g capacity
• Tea brewing: Crane Oltre brewer
• Mixing system: Crane mixing system
• Cup drop unit: Crane unit for plastic or paper, single or dual‑walled cups
• Cup capacity: up to 800 cups
• Cup diameters: 70, 73, 80 mm
• Cup sizes: 7, 9, 12 oz (200, 250, 340 ml)

Connectivity & controls

• USB connectivity: 3 × USB 2.0
• EVA/DTS communication: via DEX port
• Jug facility: Yes
• Cup sensor: SureVend sensors (standard)
• Energy‑saving mode: Programmable
• My Code: Yes
• Free vend: Yes
• Payment systems: up to 3
• Coin/notes/cashless: compatible with leading systems

Performance

• Vend time (bean‑to‑cup, 160 ml): 39 seconds
• Vend time (fresh brew, 160 ml): 35 seconds
• Vend time (soluble coffee, 160 ml): 17 seconds

Waste capacity

• Dry waste bucket: 24 litres
• Liquid waste bucket: 9 litres

Machine dimensions

• Height: 1830 mm
• Width: 700 mm
• Depth: 790 mm
• Weight: 193 kg
• Door open: width 1370 mm (180°), depth 1460 mm (90°)

Electrical & energy

• Power supply voltage: 220–240 V
• Frequency: 50/60 Hz
• Installed power: 2.27 kW
• Energy consumption: 125 Wh/h (Instant & FB), 162 Wh/h (Espresso)
• MDB protocol: included as standard
• EXE protocol: optional kit available

Water requirements

• Water main pressure: 200–600 kPa (2–6 bar)
• Stopcock: 15 mm BSP from rising main
• Filtration: compatible with leading systems

Ingredient capacities

• Beans: 3.5 kg
• Ground coffee: 1.5 kg
• Leaf tea: 1.7 kg
• Instant coffee: 1.0 kg
• Instant tea: 0.5 kg
• Sugar: 3.4 kg
• Milk: 2.5 kg
• Cappuccino milk: 2.2 / 4.7 kg
• Chocolate: 2.1 / 5.8 kg
• Soup: variable
